商品の詳細:
|
| 運転型: | 電気的方法 | ダウンペーパーの厚さの厚さ: | 300gsm-10mm ボール紙および BE FLUTE |
|---|---|---|---|
| ライン作業速度(m/min): | 150-160 | FOB 期間価格: | 80000ドル |
| 最小シートサイズ: | 1500：40*45cm 1700：45*45cm | ラミネートタイプ: | 段ボール+コルガーター+コルガー |
| 最大材料サイズ: | 1500*1500mmおよび1700*1700mm | 接着ローラーサイズ: | アニロックスローラー 直径160mm |
| 調整: | 知的 | ||
| ハイライト: | Electrical Driving Sheet To Sheet Laminating Machine,300gsm-10mm Cardboard Corrugated Paper Laminator,B E FLUTE Cardboard Laminating Machine |
||
| Model | SFC1500 | SFC1700 | SFC1900 | SFC2200 |
|---|---|---|---|---|
| Max size | 1500×1500mm | 1700×1700mm | 1900×1900mm | 2200×2100mm |
| Min size | 360×380mm | 380×400mm | 450×450mm | 500×500mm |
| Top Paper | 120-800g | |||
| Bottom paper | 300gsm-10mm Corrugated board and cardboard | |||
| Max speed | 150m/min | |||
| Power | 22kw | 25kw | 27KW | 30KW |
| Stick accuracy | ±1-2.5mm | |||

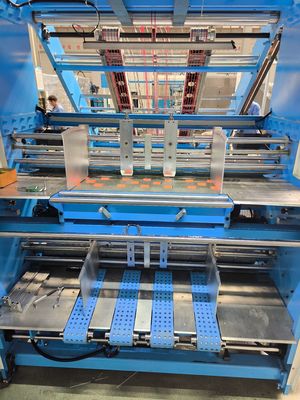

Double lead edge feeding system ensures smooth bottom paper feeding and accommodates cardboard feeding.
Adjustable paper lifting and feeding nozzle system with Becker pump for smooth operation with various paper thicknesses.
CE-compliant design with HMI and PLC interface displaying operational data, warnings, and error detection.
Pre-pile system with touch screen configuration for efficient setup and orientation.
Gates synchronous belt with SKF bearings for stable operation, featuring easy adjustment of pressure rollers and glue application.

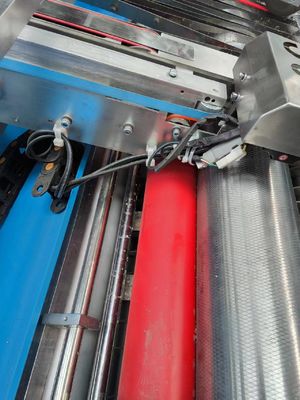

Multiple photoelectric sensors control servo motors for accurate top-bottom paper alignment. Features stainless steel glue roller for even coating.
Centralized touch screen control with high-resolution interface for real-time monitoring and troubleshooting.
