High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine

High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine
High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine
High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine

大画像 :  High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine

商品の詳細:
起源の場所: 中国
ブランド名: INNOVO
証明: CE
モデル番号: ZGFM-1500H/1700H
お支払配送条件:
最小注文数量: 1セット
価格: USD45000-65000
パッケージの詳細: 鉄のパレットおよびフィルムの包装
受渡し時間: 20〜30日
支払条件: LC、T/T
供給の能力: 30セット/月
連絡先

High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine

説明
カスタマイズ供給: 顧客需要として 終了時間: 約20~25 営業日
最大作業速度: 180メートル/分、17000枚/時 厚さの最大ボトムシートの厚さ: 8-10mmフルート
最小ボードサイズ: 38*40cmおよび40*40cm 棒の正確さ: ±1.0mm
最大紙のサイズ: 170*170cm 力: 22kW、25kW、27kW、30kW
ハイライト:

automatic flute laminator machine

,

high-speed corrugated laminator

,

professional automatic laminator machine

High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine
High-Performance Corrugated Paperboard Lamination Solution
The Professional Automatic High Speed Flute Laminator Machine delivers superior performance for corrugated paperboard lamination. This industrial-grade solution handles a wide range of materials from 180-800g/m thin paper to 0.5-10mm paperboard, including single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, and styrofoam board.
Key Features
  • Maximum speed of 17,000 sheets per hour (180m/min)
  • Handles materials from 180-800g/m thin paper to 10mm flute board
  • Customizable configurations to meet specific production requirements
  • Touch screen automatic adjustment system
  • Maximum paper size: 170×170cm
  • Precision lamination with ±1.0mm stick accuracy
Technical Specifications
Parameter Specification
Max Bottom Sheet Feeding Thickness About 10mm Flute
Applicable Materials 180-800g/m thin paper, cardboard, 0.5-10mm paperboard, single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, styrofoam board
Stick Accuracy ±1.0mm
Min Board Size 36×38cm and 38×40cm
Adjust Type Automatic By Touch Screen
Laminating Type Corrugated+cardboard
Dimensions 16300×2400×2550mm
Max Speed 17000sheet/hour (180m/min)
Advanced Structural Features
This laminator incorporates world-class engineering including a leading transmission control system, computerized high-speed fitting, Chuanliu-type air supply head, Feida Block with low stack cardboard, multiple sets of electric eyes for paper alignment, full-function electronic control system, and automatic glue replenishment system.

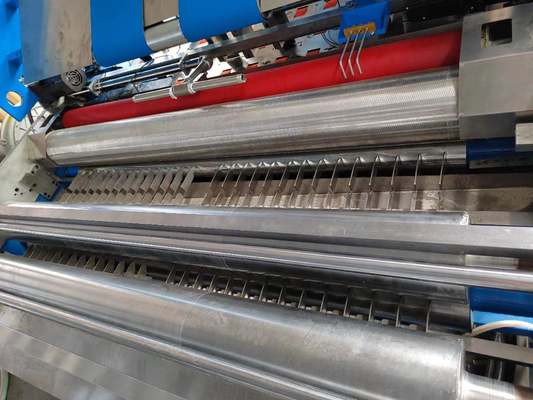

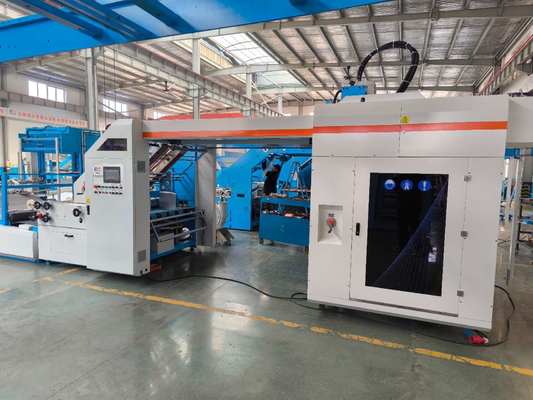

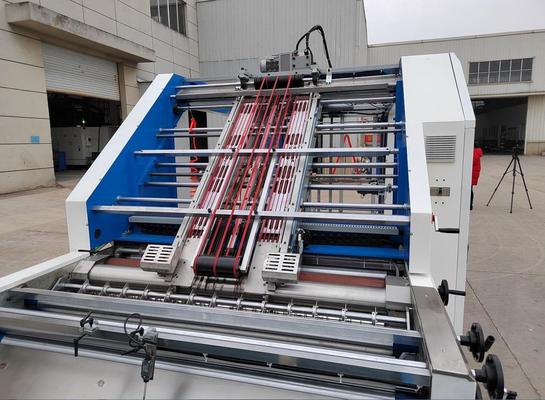

Product Images
High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine 0 High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine 1 High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine 2 High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine 3 High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine 4 High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine 5
Support & Services
Our comprehensive support package includes installation assistance, operator training, troubleshooting, and maintenance services to ensure optimal machine performance throughout its lifecycle.
Packaging & Shipping
The machine is securely packaged with protective materials and shipped via reliable carriers. Standard packaging includes iron pallet and film wrapping to ensure safe transportation.
Frequently Asked Questions
What is the brand and model of this machine?
This is the INNOVO Automatic Flute Laminator Machine, model ZGFM1700 with CE certification.
Where is this machine manufactured?
The machine is manufactured in China to international quality standards.
What are the payment terms?
We accept L/C and T/T payment methods with a minimum order quantity of 1 set.
