商品の詳細:
|
| 積載重量: | 1.5トン | マシンのモデル: | PT-1300/1650 |
|---|---|---|---|
| エクスポートパッケージ: | 鉄ホルダー付きの真空バッグ | 機械試験報告書: | 顧客需要として |
| 機器の電力: | 22KW、380V、3フェーズ | 最低の物質的なサイズ: | 50*60cm以上 |
| ビデオサポート: | 供給できます | 最高パレット サイズ: | 130*80cm |
| ハイライト: | pile turner machine for dust removal,pile turner machine for air alignment,pile turner machine for printing packaging |
||

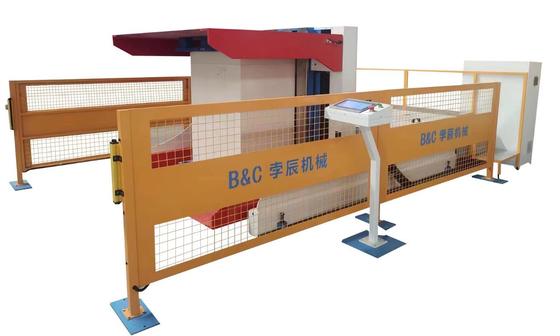

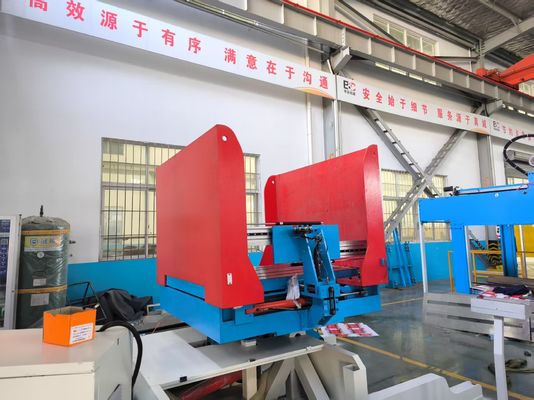

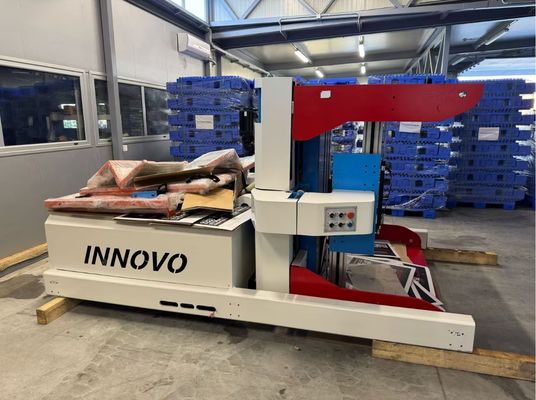

This pile turner machine is designed for dust removal and air alignment in the printing and packaging industry, significantly improving work efficiency and print quality.
The Pile Turner performs multiple functions including turning, airing, aligning, jogging, dust removal, drying, conditioning, ionizing, pallet changing, centering, and sheet pulling. It is essential equipment for enhancing productivity and print quality in industrial printing operations.
| Model | 1300 | 1450 | 1650 | 1900 |
|---|---|---|---|---|
| Max sheet size | 800×1300mm | 1100×1450mm | 1200×1700mm | 1400×1850mm |
| Min sheet size | 500×600mm | 500×600mm | 500×600mm | 500×600mm |
| Loading weight | 1000kg | 1400kg | 2500kg | 3000kg |
| Platform width | 1300mm | 1450mm | 1700mm | 1850mm |
| Max pile height | 1600mm | 1600mm | 1600mm | 1600mm |
| Min pile height | 800mm | 850mm | 850mm | 900mm |
| Power | 380V, 10KW | 380V, 12KW | 380V, 14KW | 380V, 22KW |
| Dimension | 10600×2400×2750mm | 11400×2600×2950mm | 13000×2700×2950mm | 13800×2900×2950mm |
| Machine weight | 3500kg | 4800kg | 6500kg | 8000kg |
