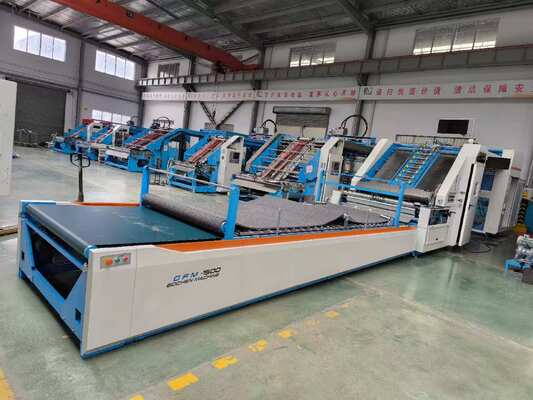

High Speed Flute Laminator Machine Offering Flexible Sheet Feeding Options and Digital Glue Control for and Corrugated Lamination

大画像 : High Speed Flute Laminator Machine Offering Flexible Sheet Feeding Options and Digital Glue Control for and Corrugated Lamination

商品の詳細:

起源の場所:	anhui
ブランド名:	Innovo Bochen
証明:	CE
モデル番号:	GFS-1500/1700

お支払配送条件:

最小注文数量:	1セット
価格:	60000-78000USD
パッケージの詳細:	真空バッグ
受渡し時間:	30〜45日
供給の能力:	月額30セット

連絡先

High Speed Flute Laminator Machine Offering Flexible Sheet Feeding Options and Digital Glue Control for and Corrugated Lamination

説明

支払い:	T/TまたはL/C	機械の純重量:	9400kg
ラミネートタイプ:	段ボールまたは段ボールからコルジャーへの紙	最高の回線速度:	215m/分または20000個/時間
保証期間:	2年または24ヶ月	最大シートサイズ:	15001500mmおよび17001700mm
電源:	380V/50Hz 3フェーズ	表面ペーパー厚さ:	100~800gm 印刷紙や紙箱
Maeketingのタイプ:	十分に理性的	力:	30kW
応用:	ラミネート段ボールと板紙

High Speed Flute Laminator Machine Offering Flexible Sheet Feeding Options and Digital Glue Control for and Corrugated Lamination

Reduced Glue Consumption in Corrugated Lamination

Performance Characteristics

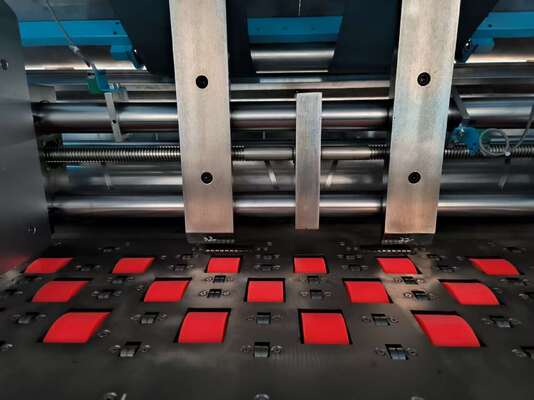

Lead edge feeding system: No feeding pressure structure, prevents damage to corrugated material while enhancing pressure resistance.
Top sheet aligner system: Ensures high accuracy with optional overlap or separation sheet feeding modes.
Digital glue volume control: Automatic adjustment of glue volume and gluing roller gap based on bottom sheet thickness.
Large stainless steel anilox roller (160mm diameter): Provides stable, high-efficiency operation with even coating and glue savings.
Automatic paper detection: Servo correction technology ensures top paper accurately tracks bottom paper.
Dual-use lifting platform: Accommodates both pre-stacker paper feeding and direct stack feeding.
Multifunctional rack: Designed for curved corrugated materials.
Circulating glue system: Reduces glue loss and maintains stable adhesion.
One-click adjustment: Whole machine setup with simple paper size input.
Order memory function: Quick recall of previous settings for efficient operation.
Video monitoring: Optional system for operational oversight.

Technical Specifications

Model	GFS1500	GFS-1700	GFS-1900	GFS-2200
Max size	1500×15000mm	1700×1700mm	1900×1900mm	2200×2100mm
Min size	360×380mm	380×400mm	450×450mm	500×500mm
Top Paper	120-800g	120-800g	120-800g	120-800g
Bottom paper	300gsm-10mm Corrugated board and cardboard
Max speed	200m/min	200m/min	200m/min	200m/min
Power	28kw	30kw	33KW	35KW
Stick accuracy	±1.0mm	±1.0mm	±1.0mm	±1.0mm

Structural Features

Advanced transmission control system with automatic paper size adjustment
Computerized high-speed fitting capability (up to 18,000 pieces/hour)
Chuanliu-type air supply head with multiple nozzle configurations
Feida Block system for efficient cardboard handling with optional track-assisted pre-stacker
Multiple electric eye sensors for precise paper alignment
Full-function electronic control system with human-machine interface and PLC monitoring
Automatic glue replenishment system with recycling capability

System Components

Bottom Paper Feeding
